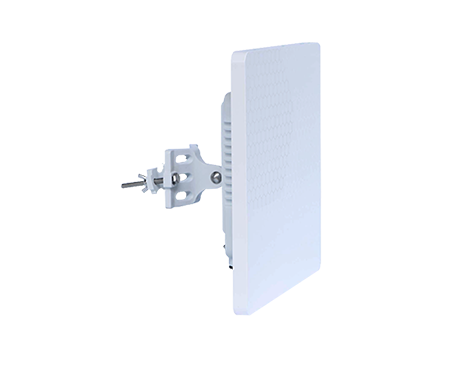

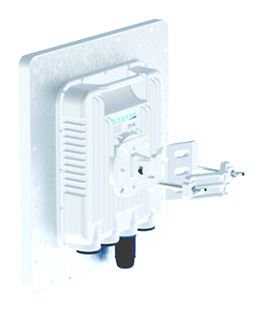

Wireless Bridge Y6C/Y623C

Product Overview

This product is based on the IEEE 802.11ac/ax/be technical standard, adopts the latest Wi-Fi 7 technology, supports a 320MHz ultra-wide channel, and operates in the full frequency band of 5.9-7.1GHz, ensuring high-speed and stable wireless transmission.
This product is specifically designed for scenarios such as long-distance wireless backhaul, field monitoring, smart cities, and industrial communications, and maintains stable and efficient performance even in harsh environments.

Lightenning Fast & Rock-Solid Stability
▷ Equipped with the next-generation Wi-Fi 7 technology standard, it supports industry-leading 320MHz ultra-wide channels and intelligent adaptation across the 5.9-7.1GHz full-band, providing you with an ultimate high-speed transmission experience and military-grade stability.
▷Maximum throughput reachs 2.3Gbps in real project testing(1.5km)

2.3Gbps

Core Performance
▷ With Qualcomm Dual Core Processor, providing high performance of data processing
▷ The measured throughput reached 2.3Gbps in real project, meeting the requirements of the high-bandwidth scenarios.

Industry Grade Intrusion Protection
▷ IP67, equipped with waterproof sealing strips and dedicated waterproof connectors, effectively resisting harsh environments.
▷ Metal case, robust and durable, suitable for extreme outdoor conditions.

Local Connectivity & Power Supply
▷ Short Distance Scenario：UTP CAT6e or CAT7 by 2.5Gbps high speed ethernet port, support POE.
▷ Long Distance Scenario：SM Fiber by SFP+ port, support photovoltaic power supply (need to purchase separately).

Key Features

Software Features

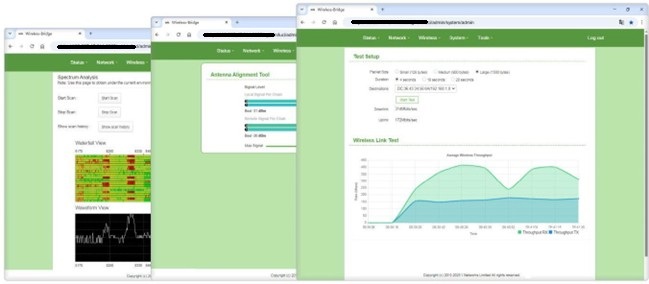

This product features an intelligent software system that integrates both bridge and router working modes, allowing for flexible switching between AP (Access Point) and STA (Client Equipment) roles to meet diverse networking scheme. The system adopts the latest encryption technologies such as WPA3 to ensure secure data transmission, includes antenna calibration tools to optimize signal quality, supports full-band wireless spectrum scanning to avoid interference, and possesses high-precision distance measurement capabilities, providing accurate data support for network planning and comprehensively ensuring the stability and reliability of the wireless link.

Technical Specifications

Specification Item	Value
Maximum Throughput	2.3Gbps(LOS, 1.5km)
Networking	PTP,PTMP with TDMA Duplexing Supported
Network Mode	Bridge/Router(Access Point)
VLAN Support	802.1Q
Network Latency	<1ms
Modulation	2×2 MU-MIMO；OFDMA；4096QAM
Bandwidth	Support 320MHz Large Band
Antenna Connector	N-Female Interface(for external Antenna with Model Y6C)
RF Output Power	26dBm
Working Frequency	5950-7105 MHz（depending on specific deploy location）
Sensitivity (MCS 0）	-84 dBm @320 MHz -87 dBm @160 MHz -90 dBm @ 80 MHz -93 dBm @ 40 MHz -96 dBm @ 20 MHz
Local ports	• 1* SFP+：SFP+ Optical Interface，supports 2.5Gbpss optical link local connection • 1*RJ45: 2.5Gbps Ethernet Port via Cat6e/Cat7 UTP Cable
Power Supply	DC: 12V, supports PoE of IEEE 802.3af/at standard
Spectrum Management	Active scanning & monitoring function; Recording continuous radio frequency interference on each channel.
Network Management	Visualized UI management interface, standard SNMP v2c/v3 protocol network management, centralized cloud management platform access, and support for TR-069 remote management protocol.
Wireless Security	Supports WPA3-PSK, WPA3, WPA2-PSK, WPA2-PSK and WPA2-Radius certifications.
QoS	This product supports a comprehensive QoS (Quality of Service) guarantee mechanism.
